UPVC Pipe Manufacturer

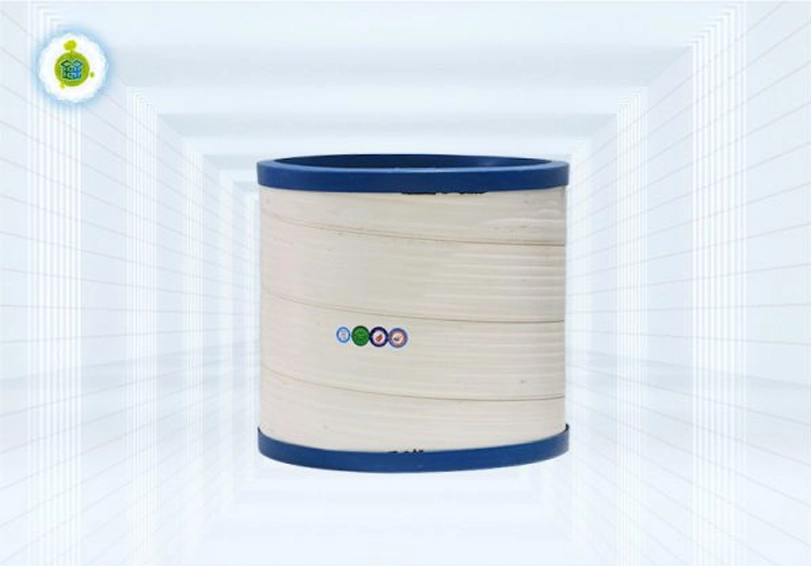

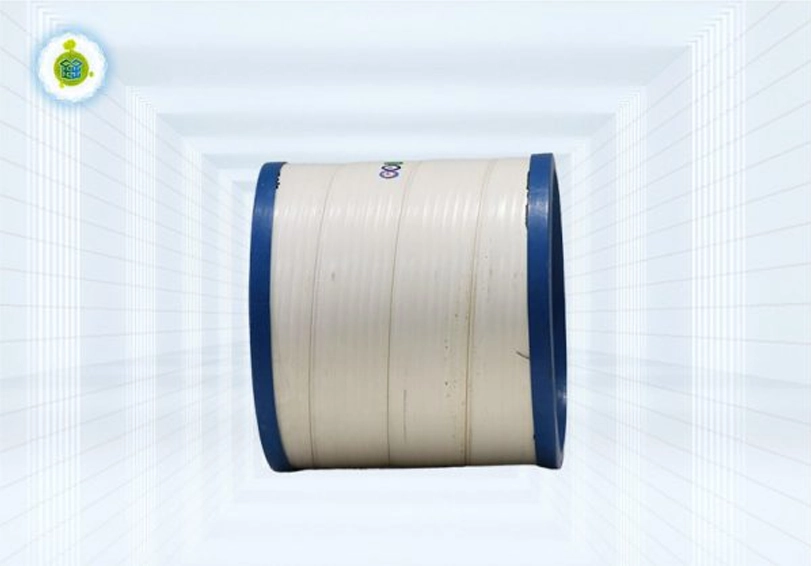

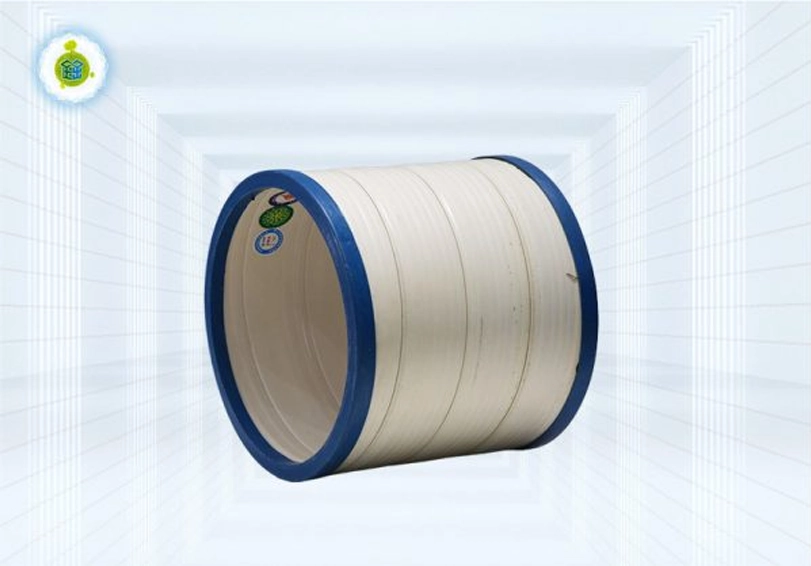

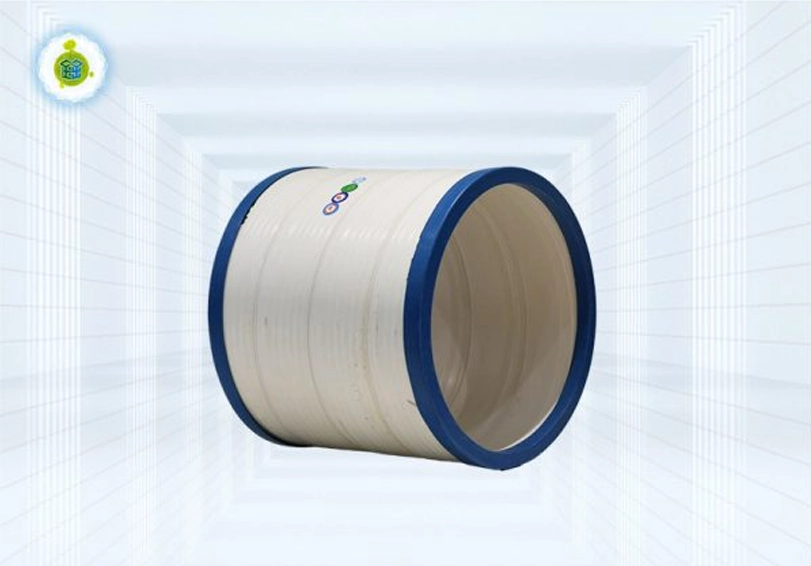

UPVC pipe is made of polyvinyl chloride(PVC) resin as the main raw material, adding the necessary additives to form a mixture, plasticized and extruded into a PVC-U sheet with a locking structure on the outside, and then made into single-layer, double-layer and multi-layer spiral winding pipe by winding technology.

WhatsApp Inquiry Now

Product Features Application Areas Specification & Dimension Performance Indicators

Product Features

1. UPVC pipes are impact-resistant, friction-resistant, water-tight, stable in performance, and highly resistant to acid and alkali;
2. UPVC pipes are light in weight, easy to transport, and less affected by seasonal climate;
3. Plastic PVC pipe connectors are few and simple to connect;
4. Flexible UPVC pipe rings are flexible, allowing large deformation and uneven settlement of the foundation, with large ring force, allowing pipe-soil co-seismicity.
5. The surface roughness coefficient of UPVC pipes is 0.009, with fast flow rate. Under the same pipe diameter and slope, its water-passing capacity is 1.4 times that of cement pipes;
6. UPVC pipes do not pollute soil and groundwater sources, and waste pipes can be completely recycled.

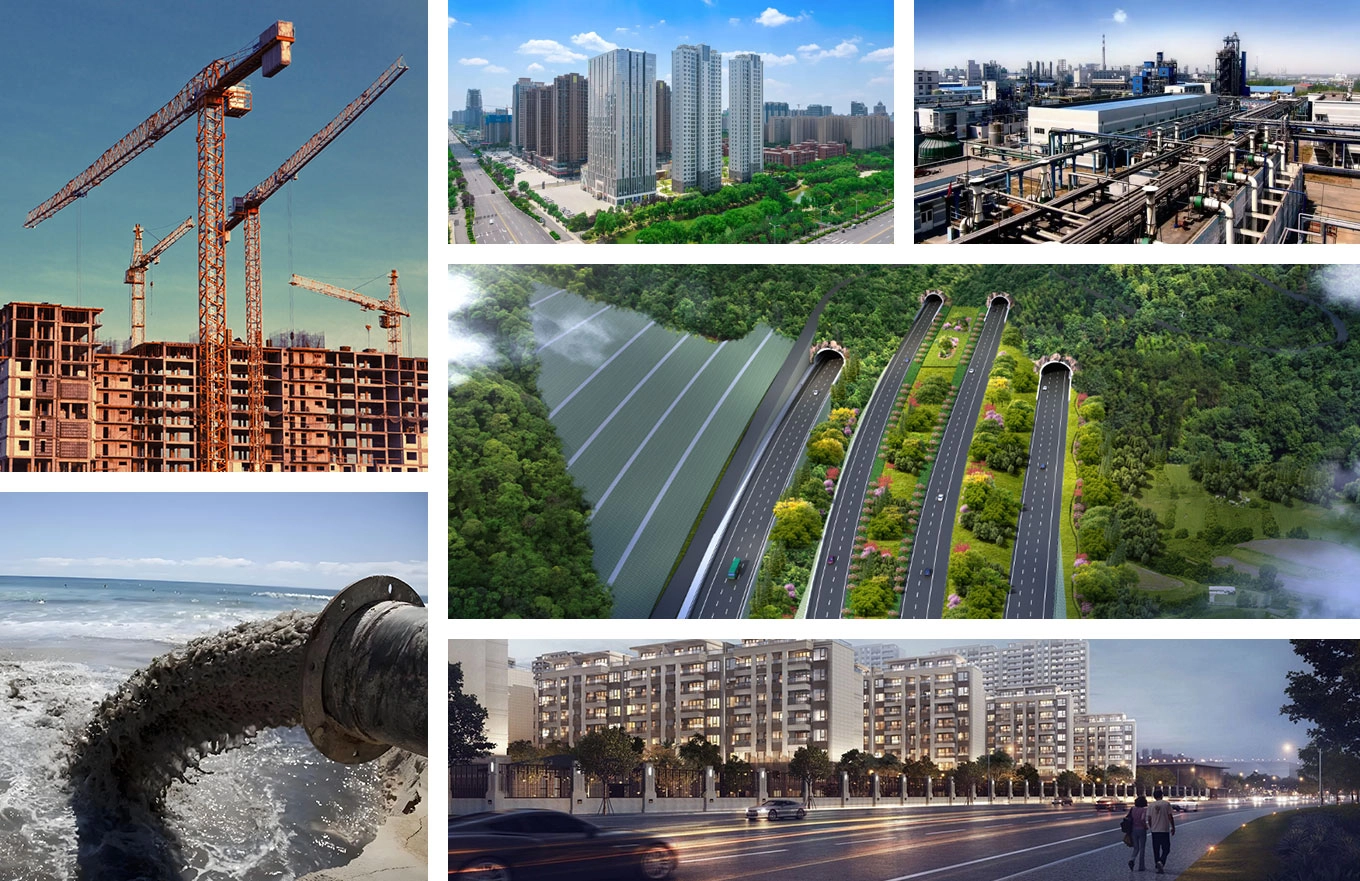

Application Areas

1. Unpressurized underground buried industrial sewage pipe;

2. Municipal drainage sewage pipes;

3. External drainage of buildings;

4. Rainwater collection and Domestic sewage discharge;

5. Expressway construction.

Specification & Dimension

DN （mm）	SN4.5		SN8		SN10		SN12.5		SN16
DN （mm）	Min. average inner diameter	Min. average outer diameter	Min. average inner diameter	Min. average outer diameter	Min. average inner diameter	Min. average outer diameter	Min. average inner diameter	Min. average outer diameter	Min. average inner diameter	Min. average outer diameter
200	/	/	195	215	/	/	/	/	/	/
300	294	313	294	319	294	329	294	329	294	337
400	392	417	392	427	392	435	392	435	392	445
500	490	525	490	533	490	543	490	543	490	552
600	588	631	588	641	588	650	588	650	588	661
700	685	738	685	747	685	757	685	757	685	767
800	785	847	785	858	785	867	785	878	785	878
1000	985	1057	985	1078	985	1092	985	1093	985	1101
1200	1185	1267	1185	1299	1185	1320	1185	1329	1185	1329
1400	1385	1529	1385	1529	1385	1529	1385	1549	1385	1549
1500	1485	1639	1485	1639	1485	1649	1485	1649	1485	1660
1600	1585	1749	1585	1811	1585	1811	1585	1811	1585	1801
1800	1785	2011	1785	2011	1785	2001	1785	2011	1785	2011
2000	1985	2211	1985	2221	1985	2211	1985	2231	1985	2231

Performance Indicators

Test Item		Indicator	Test Method
Ring Stiffness (KN/m2)	SN4.5	≥4.5	GB/T 9647-2015
	SN8	≥8
	SN10	≥10.0
	SN12	≥12.5
	SN16	≥16
Ring Flexibility		When the pipe OD becomes 30% of the original under the external force, the sample has no crack, no delamination, no reverse bending	GB/T 9647-2015
Vicat Softening Point/℃		≥75	GB/T 8802-2001
Tensile Strength/MPa （DN/IN＞300）		≥22	GB/T 1040.2-2006
Elastic Modulus/MPa		≥3000	GB/T 1040.2-2006
60℃ Oven Test 8h		No delamination, no cracking
Dichloromethane Dip		No change in internal and external surfaces	GB/T 13526-2007
Safe Combustion Performance		Extinguishes immediately on leaving the fire, no melting drips
Falling hammer impact resistance （TIR）		≤10%	GB/T 14152-2016
Creep Ratio		≤2.5%	GB/T 18042-2000
Oxygen Index		≥32%	GB/T 2406.2-2009
