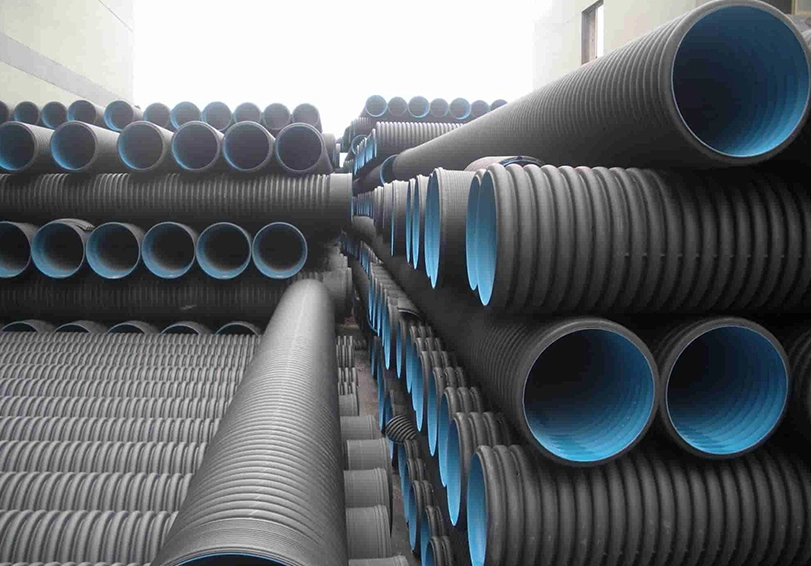

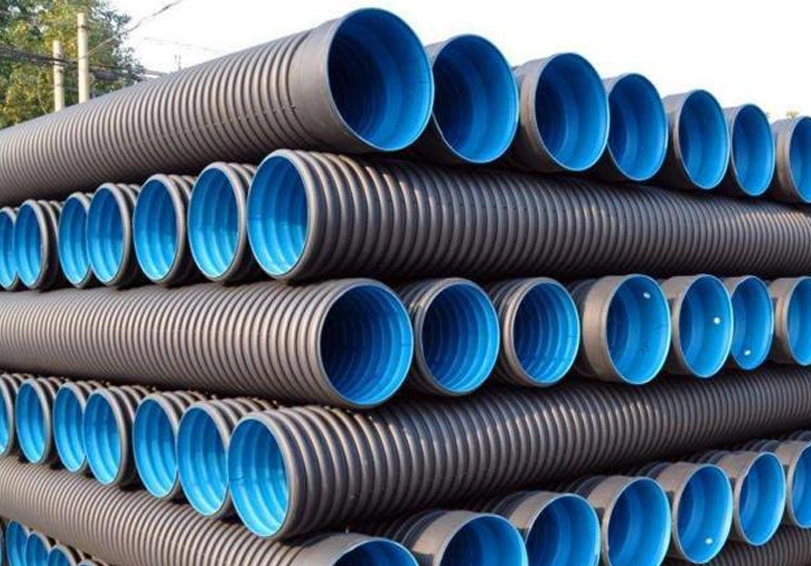

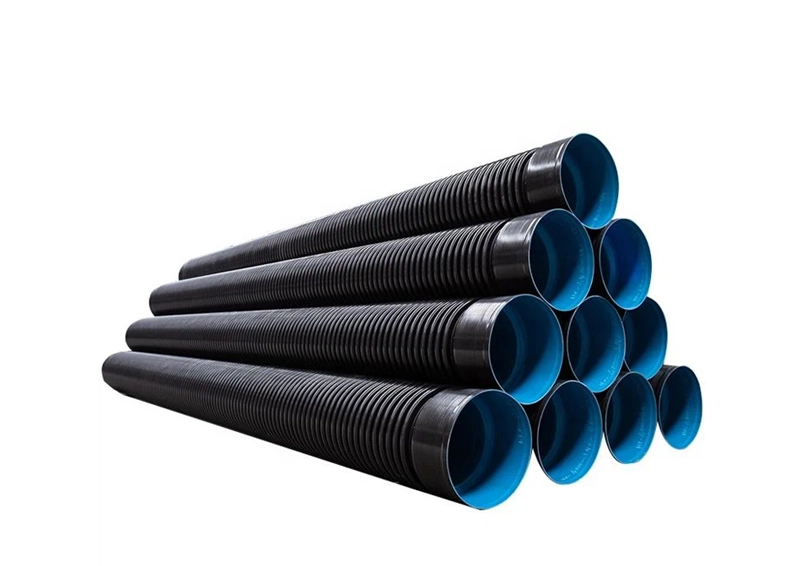

HDPE drainage pipe is made of high density polyethylene resin as the main raw material, adding the necessary additives such as antioxidant and ultraviolet absorber etc., extruded by the plastic extrusion machine and processed into a new type of plastic pipe.

WhatsApp Inquiry Now
HDPE Drainage Pipe Manufacturer
HDPE Drainage Pipe Manufacturer
HDPE Drainage Pipe Manufacturer
Product Features Application Areas Specification & Dimension Performance Indicators

Product Features

  • 1. HDPE drainage pipe has excellent flexibility, elongation at break exceeding 350%, and good low-temperature impact resistance;
  • 2. HDPE drainage pipe has good chemical corrosion resistance, ensuring safe and reliable water quality;
  • 3. HDPE drainage pipe is light and easy to transport; few joints, simple construction; smooth inner wall, easy to circulate;
  • 4. HDPE drainage pipe has a long service life, with a safe service life of at least 50 years.

Application Areas

1. Municipal drainage and sewerage pipeline system;

2. Underground buried drainage and sewage pipeline in apartments and residential neighborhoods;

3. Pre-buried pipeline of expressway, underground seepage pipe network of golf course;

4. Agricultural irrigation, water conveyance, drainage and other water projects;

5. Fluid transportation and ventilation of chemical industry and mining.

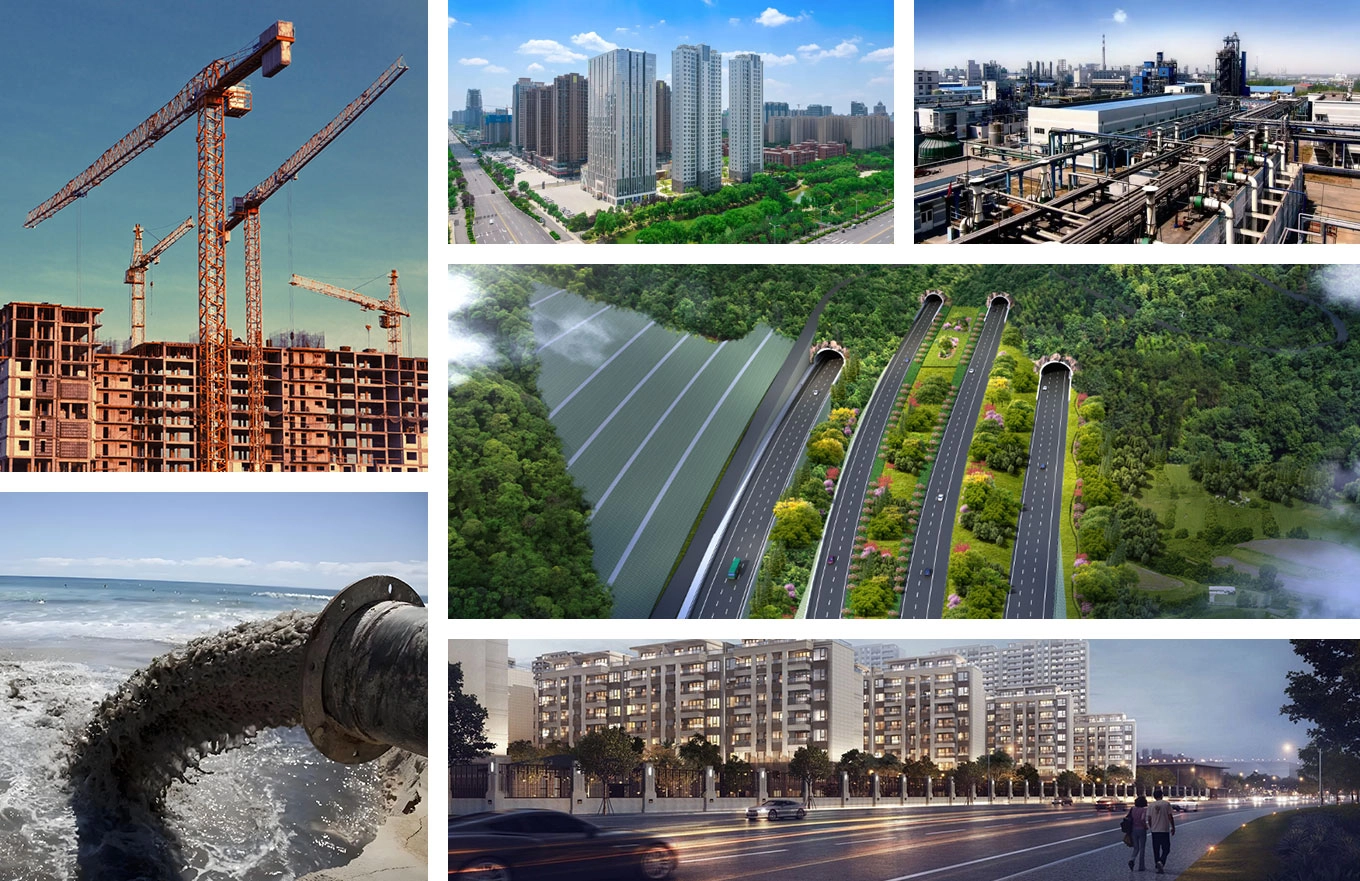

hdpe drainage pipe application

Specification & Dimension

Nominal External Diameter
De		 Nominal Wall Thickness (en/mm)
Standard Dimension Ratio
SDR 9 SDR 11 SDR 13. 6 SDR 17 SDR 21 SDR 26 SDR 33 SDR 41
Pipe Series
S 4 S 5 S 6. 3 S 8 S 10 S 12. 5 S 16 S 20
PE 80 Nominal Pressure (MPa)
1. 6 1. 25 1. 0 0. 8 0. 6 0. 5 0. 4 0. 32
PE 100 Nominal Pressure (MPa)
2. 0 1. 6 1. 25 1. 0 0. 8 0. 6 0. 5 0. 4
315 35.2 28.6 23. 2 18. 7 15. 0 12.1 9.7 7.7
355 39.7 32.2 26. 1 21. 1 16. 9 13.6 10.9 8.7
400 44.7 36.3 29. 4 23. 7 19. 1 15.3 12.3 9.8
450 50.3 40.9 33. 1 26. 7 21. 5 17.2 13.8 11
500 55.8 45.4 36. 8 29. 7 23. 9 19.1 15.3 12.3
560 62.5 50.8 41. 2 33. 2 26. 7 21.4 17.2 13.7
630 70.3 57.2 46. 3 37. 4 30. 0 24.1 19.3 15.4
710 79.3 64.5 52. 2 42. 1 33. 9 27.2 21.8 17.4
800 89.3 72.6 58. 8 47. 4 38. 1 30.6 24.5 19.6
900 81.7 66. 2 53. 3 42. 9 34.4 27.6 22
1000 90.2 72. 5 59. 3 47. 7 38.2 30.6 24.5
1200 88. 2 67. 9 57. 2 45.9 36.7 29.4
1400 102. 9 82. 4 66. 7 53.3 42.9 34.3
1600 117. 6 94. 1 76. 2 61.2 49 39.2
1800 105. 9 85. 7 69.1 54.5 43.8
2000 117. 6 95. 2 76.9 60.6 48.8
2250 107. 2 86 70 55
2500 119. 1 96.5 77.7 61.2
Note: Nominal pressure is calculated based on C=1.25.

Performance Indicators

Test Item Indicator Test Method
Melt Mass Flow Rate(g/10 min) MFR change before and after processing≤20% GB/T 3682.1-2018
Oxidation Induction Time ≥20 min. GB/T 19466.6-2009
Longitudinal Retraction Rate ≤3% GB/T 6671-2001
Carbon Black Content  2.0%～2.5% GB/T 13021-1991
Carbon Black Dispersion
Pigment Dispersion 		 ≤ grade 3 GB/T 18251-2000
Ash Content ≤0.1% GB/T 9345.1-2008
Elongation At Break ≥350% GB/T 8004.3-2003
Resistance To Slow Crack Growth
en≤5 mm(Cone Test)		 ＜10 mm/24h GB/T 19279-2003
Resistance To Slow Crack Growth
en＞5 mm(Incision Test)		 No damage,no leakage GB/T 18476-2001
Hydrostatic Pressure Strength 20℃，100h No damage,no leakage GB/T 6111-2003
80℃，165h No damage,no leakage GB/T 6111-2003
280℃，1000h No damage,no leakage GB/T 6111-2003
